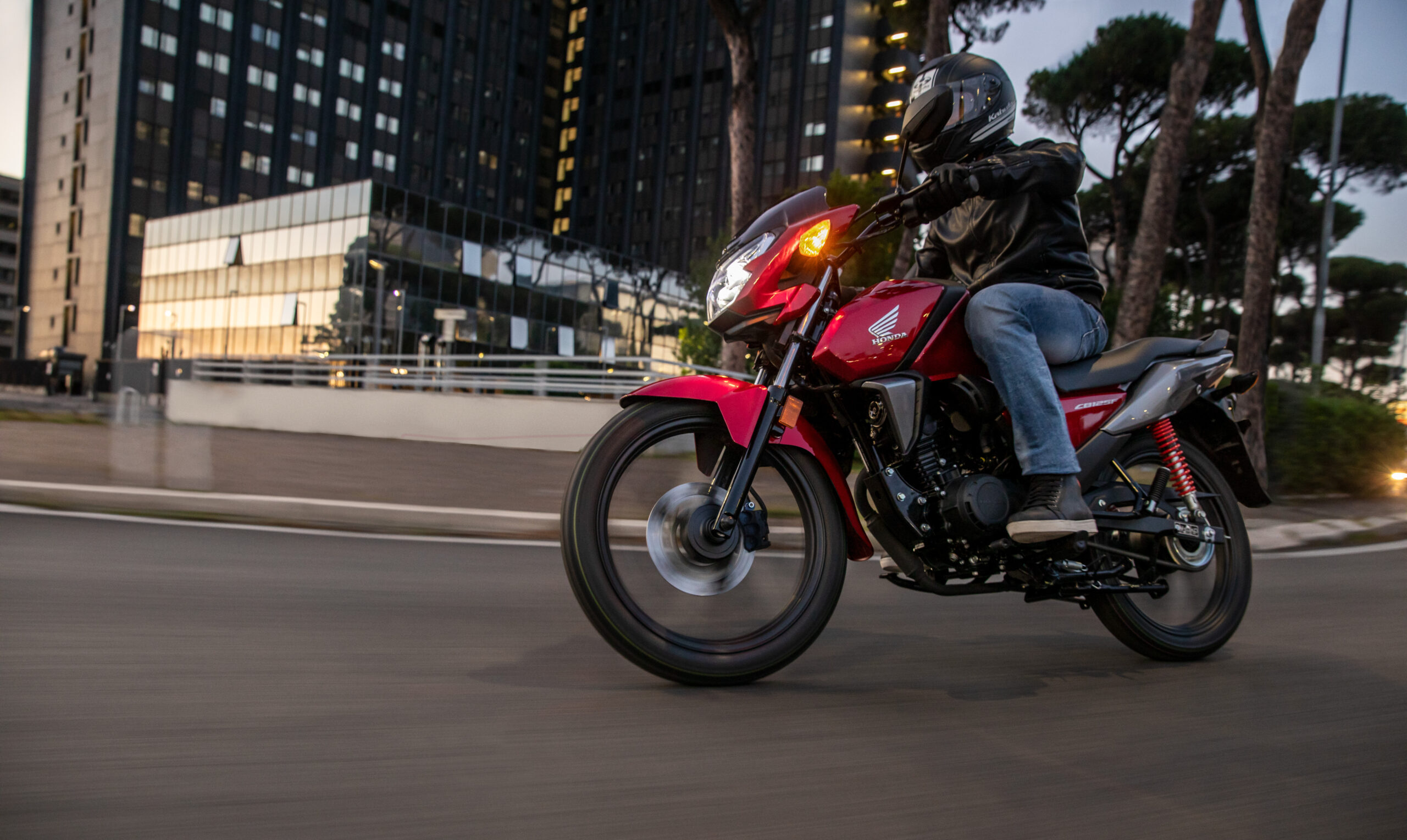

CB 125F
Great equipment
Get on the gas and face the road to bring your world to life. You are fast. You are agile. You are in total control, while keeping the fun and performance intact, especially in the city. Its air-cooled PGM-FI single-cylinder 2-valve eSP (enhanced Smart Power) injection engine has been designed to be robust and reliable, as well as intelligent. A perfect bike for daily commuting but also for escaping the city, able to adapt perfectly to your lifestyle.
Street smart
The new CB125F is a complete motorcycle, able to offer a fun and satisfying riding experience.
Thanks to the 11 kg less overall weight, it is even more agile and snappy and is equipped with a digital display and an LED headlight. In addition, its air-cooled PGM-FI single-cylinder 2-valve eSP (enhanced Smart Power) injection engine has been designed to be robust and reliable, as well as intelligent: it guarantees rapid acceleration and a fuel consumption of 66.7 km. / l, with a potential range of 800km!
A perfect bike for daily commuting but also for escaping the city, able to adapt perfectly to your lifestyle. Either way, it will thrill you every time you turn the key.
CB style
CB125F
The CB125F has in its DNA the exclusive styling of the CB family which includes a wide-designed fuel tank and silver-colored side conveyors.
But it also has something uniquely its own: the fairing and windshield offer wind protection while the dark engine and exhaust enhance the brilliant graphics. Finally, the red rear shock springs add a sporty touch.
The large LED headlight illuminates the road perfectly while the passenger has comfortable independent handles. Finally, thanks to the central stand, it is now easier to maintain the drive chain.
Technical features
Engine
| Bore x Stroke (mm) | 50 x 63,1 mm |
| Carburation | Honda PGM-FI Electronic injection |
| Compression ratio | 10.0:1 |
| CO2 emissions | 34 (g/km) |
| Engine Displacement (cc) | 124 cc |
| Engine Type | Air-cooled 4-stroke single-cylinder, 2-valve single shaft overhead (OHC), balance counter-shaft, Euro 5 |
| Consumption | 66,7 km/l (medium cycle WMTC) |
| Max. Power Output | 11 hp (8 kW) @ 7.500 rpm |
| Max. Torque | 10,9 Nm @ 6.000 rpm |
| Oil Capacity (Litres) | 1 liter |
Wheels
| Brakes Front | Hydraulic disc 240 mm with 2-piston caliper, CBS |
| Brakes Rear | 130 mm drum, CBS |
| Suspension Front | Telescopic fork 31 mm, wheel travel 120 mm |
| Suspension Rear | Double shock absorber, 5 position pre-charge |
| Tyre Size Front | 80/100 – 18M/C 47P |
| Tyre Size Rear | 90/90 – 18M/C 51P |
| Wheels Front | 5-spoke aluminum, 18 inches |
| Wheels Rear | 5-spoke aluminum, 18 inches |
Dimensions and weight
| Battery capacity(VAh) | 12V/5AH |
| Caster Angle | 26° |
| Dimensions (L×W×H) (mm) | 2.015 x 750 x 1.100 mm |
| Frame type | Steel tubular |
| Fuel Tank Capacity (Litres) | 11 L |
| Ground Clearance (mm) | 160 mm |
| Kerb Weight (kg) | 117 kg |
| Seat Height (mm) | 790 mm |
| Trail (mm) | 92,4 mm |
| Wheelbase (mm) | 1.280 mm |
Transmission
| Clutch | Oil bath, multidisc |
| Final Drive | Chain |
| Transmission type | Manual, 5 shifts |
Instruments and Electrics
| Front light | LED |
| Cockpit | Speedometer, Rev Counter, Fuel level, Odometer (Total+trip), Gear, service |
